SpringBoot + Thymeleaf + Bootstrap5 整合 MyBatis-Plus 和 MySQL 实现动态分类标签渲染教程

教程概述

继上一篇文章 SpringBoot整合Thymeleaf与Bootstrap5：快速构建导航栏并抽取公共代码，教学了SpringBoot整合Thymeleaf与Bootstrap5快速的实现了一个网站的导航栏，当然，只是一个展示。本教程接上一个项目，实现整合MyBatisPlus、MySQL，将标签分类信息存放于数据库，完成网站中分类标签的动态模板渲染。

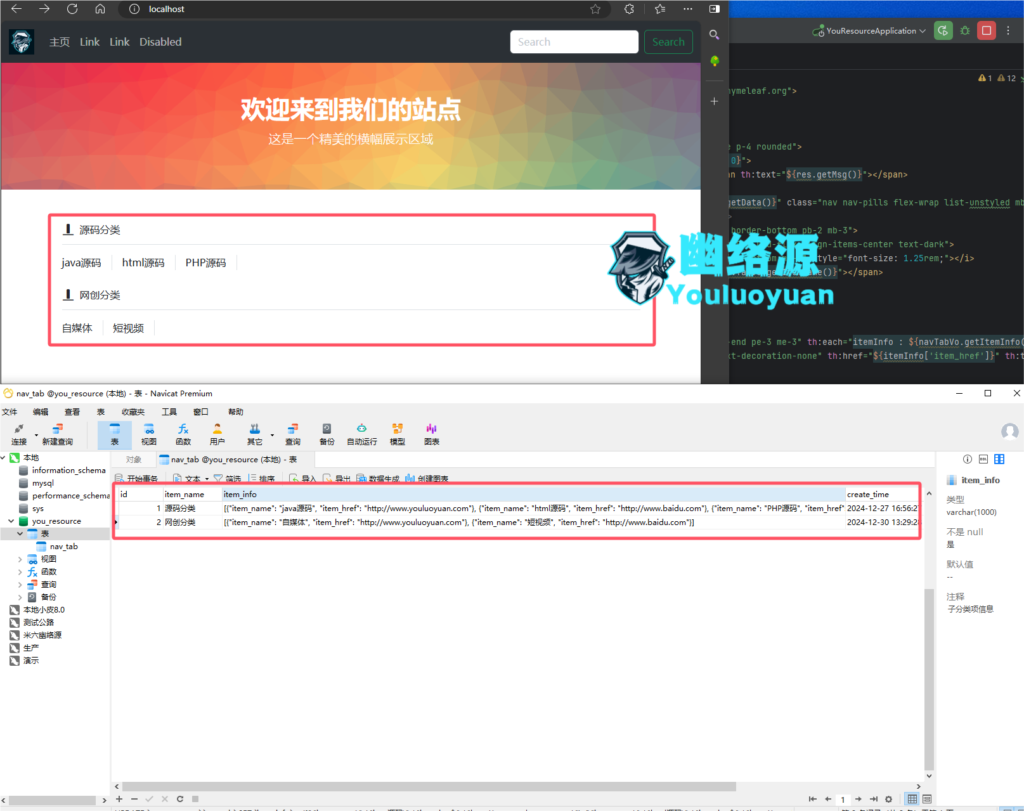

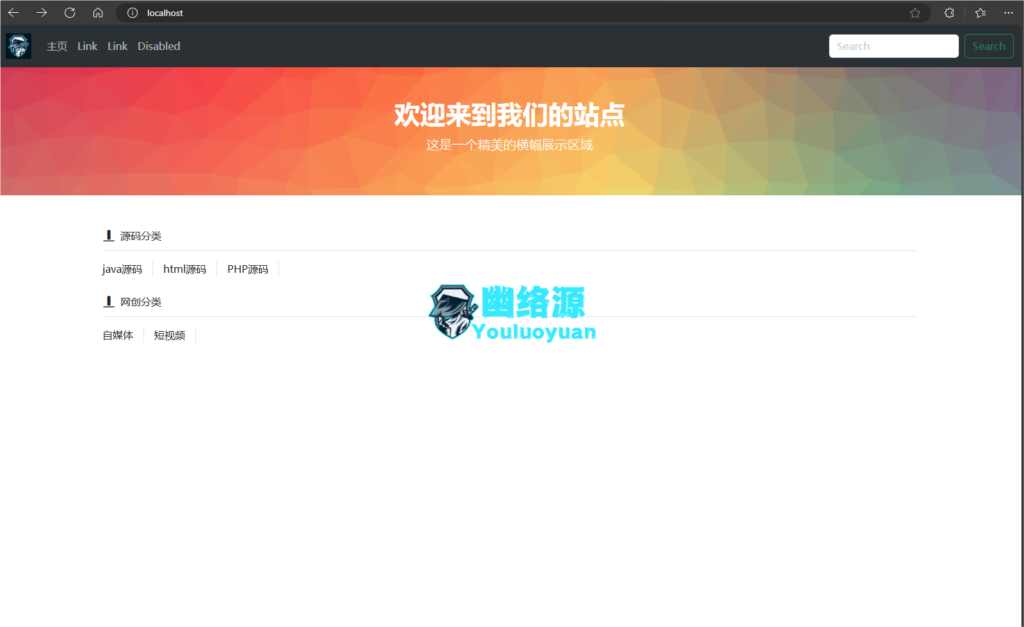

最后的结果如下图

教程步骤

1.导入MyBatisPlus、MySQL依赖

2.创建Mapper的目录

3.配置MySQL、MyBatisPlus

4.创建标签页面，并在主页引入

5.创建数据库、建表，构造数据

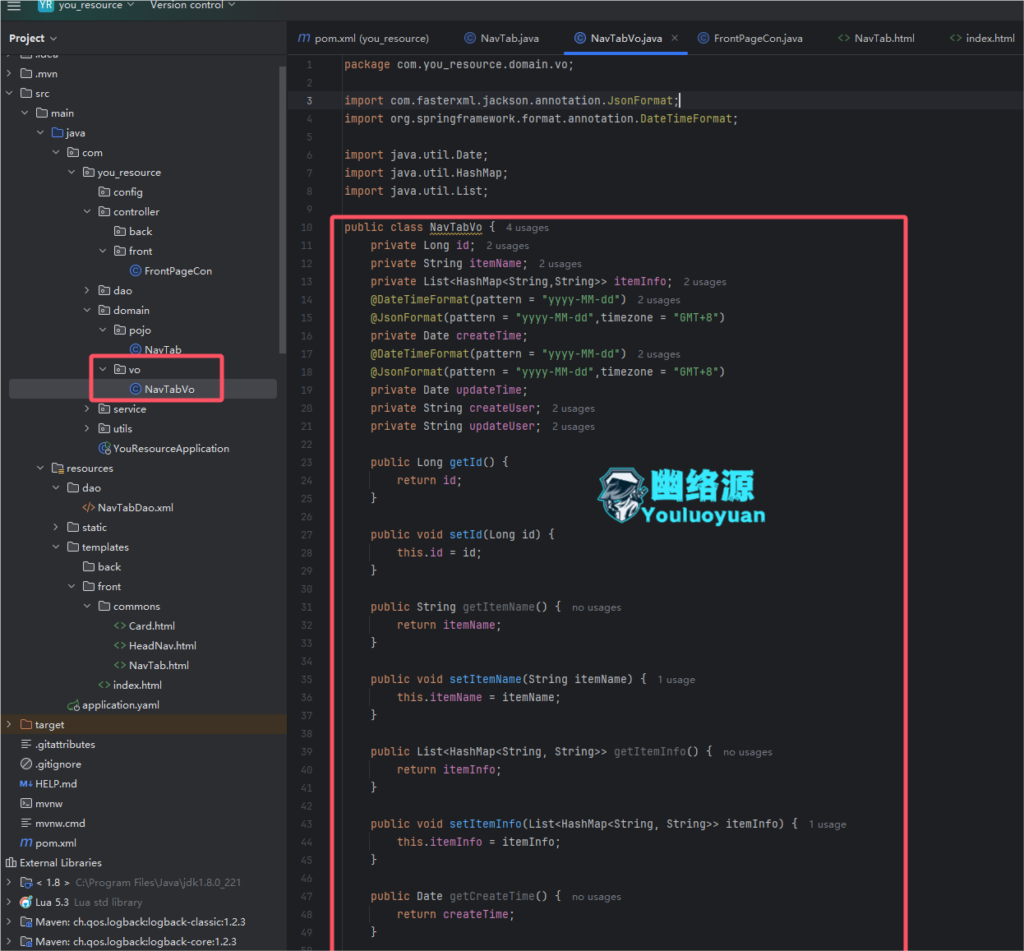

6.创建视图对象

7.创建响应数据工具类

8.修改主页的控制器

9.查看主页

10.修改标签页动态获取分类标签

步骤1：导入MyBatisPlus、MySQL依赖

导入如下依赖，这里还需要额外导入jackson-core的依赖，因为本教程的分类子标签是以json形式存放于数据库中，需要使用该库对其进行转换


<!-- MyBatis-Plus Starter -->
<dependency>
    <groupId>com.baomidou</groupId>
    <artifactId>mybatis-plus-boot-starter</artifactId>
    <version>3.4.1</version>
</dependency>
<!-- MySQL Connector -->
<dependency>
    <groupId>mysql</groupId>
    <artifactId>mysql-connector-java</artifactId>
</dependency>
<!--jackson-core-->
<dependency>
    <groupId>com.fasterxml.jackson.core</groupId>
    <artifactId>jackson-core</artifactId>
</dependency>
<!-- MyBatis-Plus Starter -->
<dependency>
    <groupId>com.baomidou</groupId>
    <artifactId>mybatis-plus-boot-starter</artifactId>
    <version>3.4.1</version>
</dependency>
<!-- MySQL Connector -->
<dependency>
    <groupId>mysql</groupId>
    <artifactId>mysql-connector-java</artifactId>
</dependency>
<!--jackson-core-->
<dependency>
    <groupId>com.fasterxml.jackson.core</groupId>
    <artifactId>jackson-core</artifactId>
</dependency>
<!-- MyBatis-Plus Starter -->
<dependency>
    <groupId>com.baomidou</groupId>
    <artifactId>mybatis-plus-boot-starter</artifactId>
    <version>3.4.1</version>
</dependency>
<!-- MySQL Connector -->
<dependency>
    <groupId>mysql</groupId>
    <artifactId>mysql-connector-java</artifactId>
</dependency>
<!--jackson-core-->
<dependency>
    <groupId>com.fasterxml.jackson.core</groupId>
    <artifactId>jackson-core</artifactId>
</dependency>

如图

步骤2：创建Mapper的目录

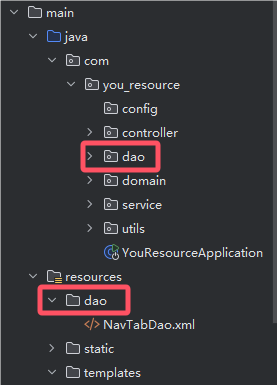

在resources目录下，我这里创建了一个名为dao的目录，用于存放mapper的xml文件，如图

步骤3：配置MySQL、MyBatisPlus

在application.yaml中，添加上mysql的配置与mybatisplus的配置，接上次的thymeleaf完整如下，注意将mysql信息配置正确


spring:
  thymeleaf:
    cache: false
    encoding: UTF-8
    prefix: classpath:/templates/
    suffix: .html
    mode: HTML5
  datasource:
    driver-class-name: com.mysql.cj.jdbc.Driver
    url: jdbc:mysql://localhost:3306/you_resource?useUnicode=true&characterEncoding=UTF-8&serverTimezone=Asia/Shanghai
    username: root
    password: 159357
mybatis-plus:
  configuration:
    map-underscore-to-camel-case: true
  mapper-locations: classpath:/dao/*.xml
spring:
  thymeleaf:
    cache: false
    encoding: UTF-8
    prefix: classpath:/templates/
    suffix: .html
    mode: HTML5
  datasource:
    driver-class-name: com.mysql.cj.jdbc.Driver
    url: jdbc:mysql://localhost:3306/you_resource?useUnicode=true&characterEncoding=UTF-8&serverTimezone=Asia/Shanghai
    username: root
    password: 159357
mybatis-plus:
  configuration:
    map-underscore-to-camel-case: true
  mapper-locations: classpath:/dao/*.xml
spring:
  thymeleaf:
    cache: false
    encoding: UTF-8
    prefix: classpath:/templates/
    suffix: .html
    mode: HTML5
  datasource:
    driver-class-name: com.mysql.cj.jdbc.Driver
    url: jdbc:mysql://localhost:3306/you_resource?useUnicode=true&characterEncoding=UTF-8&serverTimezone=Asia/Shanghai
    username: root
    password: 159357
mybatis-plus:
  configuration:
    map-underscore-to-camel-case: true
  mapper-locations: classpath:/dao/*.xml

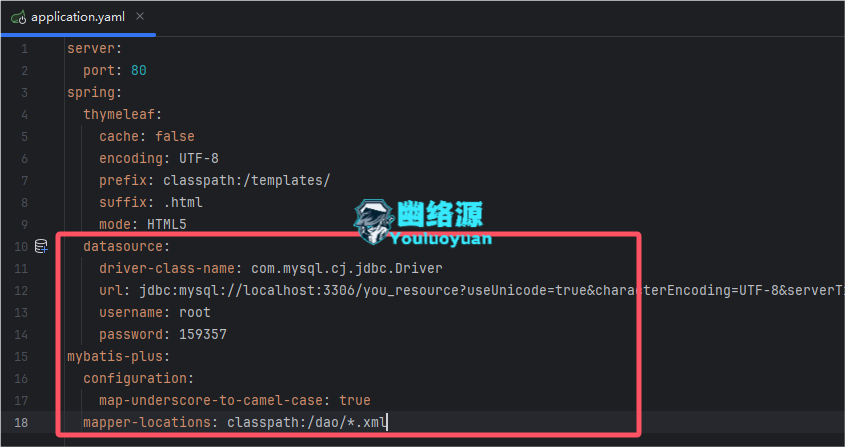

如图

步骤4：创建标签页面

虽然称为标签页面，但是是用于给主页引入的，之所以抽取出来，是考虑到后续其他页面可能会使用，甚至表的结构也会修改，当然现在不考虑那么多，怎么块怎么来。

在templates/front/commons下创建NavTab.html，内容如下


<!DOCTYPE html>
<html lang="en" xmlns:th="http://www.thymeleaf.org">
<head>
</head>
<body>
    <div class="container mt-4 bg-white p-4 rounded">
        <ul class="nav nav-pills flex-wrap list-unstyled mb-4">
            <!-- 独立的一行，显示 A分类 -->
            <li  class="nav-item w-100 border-bottom pb-2 mb-3">
                <span class="nav-link p-0 m-0 d-flex align-items-center text-dark">
                    <i class="bi bi-align-bottom me-2" style="font-size: 1.25rem;"></i>
                    <span>源码分类</span>
                </span>
            </li>
            <!-- 其他分类项 -->
            <li class="nav-item border-end pe-3 me-3">
                <a class="text-dark text-decoration-none" href="#">分类1</a>
            </li>
            <li class="nav-item border-end pe-3 me-3">
                <a class="text-dark text-decoration-none" href="#">分类2</a>
            </li>
            <li class="nav-item border-end pe-3 me-3">
                <a class="text-dark text-decoration-none" href="#">分类3</a>
            </li>
        </ul>
        <ul class="nav nav-pills flex-wrap list-unstyled mb-4">
            <!-- 独立的一行，显示 A分类 -->
            <li  class="nav-item w-100 border-bottom pb-2 mb-3">
                <span class="nav-link p-0 m-0 d-flex align-items-center text-dark">
                    <i class="bi bi-align-bottom me-2" style="font-size: 1.25rem;"></i>
                    <span>网创分类</span>
                </span>
            </li>
            <!-- 其他分类项 -->
            <li class="nav-item border-end pe-3 me-3">
                <a class="text-dark text-decoration-none" href="#">分类1</a>
            </li>
            <li class="nav-item border-end pe-3 me-3">
                <a class="text-dark text-decoration-none" href="#">分类2</a>
            </li>
            <li class="nav-item border-end pe-3 me-3">
                <a class="text-dark text-decoration-none" href="#">分类3</a>
            </li>
        </ul>
    </div>
</body>
</html>
<!DOCTYPE html>
<html lang="en" xmlns:th="http://www.thymeleaf.org">
<head>
</head>
<body>
    <div class="container mt-4 bg-white p-4 rounded">
        <ul class="nav nav-pills flex-wrap list-unstyled mb-4">
            <!-- 独立的一行，显示 A分类 -->
            <li  class="nav-item w-100 border-bottom pb-2 mb-3">
                <span class="nav-link p-0 m-0 d-flex align-items-center text-dark">
                    <i class="bi bi-align-bottom me-2" style="font-size: 1.25rem;"></i>
                    <span>源码分类</span>
                </span>
            </li>

            <!-- 其他分类项 -->
            <li class="nav-item border-end pe-3 me-3">
                <a class="text-dark text-decoration-none" href="#">分类1</a>
            </li>
            <li class="nav-item border-end pe-3 me-3">
                <a class="text-dark text-decoration-none" href="#">分类2</a>
            </li>
            <li class="nav-item border-end pe-3 me-3">
                <a class="text-dark text-decoration-none" href="#">分类3</a>
            </li>
        </ul>

        <ul class="nav nav-pills flex-wrap list-unstyled mb-4">
            <!-- 独立的一行，显示 A分类 -->
            <li  class="nav-item w-100 border-bottom pb-2 mb-3">
                <span class="nav-link p-0 m-0 d-flex align-items-center text-dark">
                    <i class="bi bi-align-bottom me-2" style="font-size: 1.25rem;"></i>
                    <span>网创分类</span>
                </span>
            </li>

            <!-- 其他分类项 -->
            <li class="nav-item border-end pe-3 me-3">
                <a class="text-dark text-decoration-none" href="#">分类1</a>
            </li>
            <li class="nav-item border-end pe-3 me-3">
                <a class="text-dark text-decoration-none" href="#">分类2</a>
            </li>
            <li class="nav-item border-end pe-3 me-3">
                <a class="text-dark text-decoration-none" href="#">分类3</a>
            </li>
        </ul>
    </div>
</body>
</html>
<!DOCTYPE html>
<html lang="en" xmlns:th="http://www.thymeleaf.org">
<head>
</head>
<body>
    <div class="container mt-4 bg-white p-4 rounded">
        <ul class="nav nav-pills flex-wrap list-unstyled mb-4">
            <!-- 独立的一行，显示 A分类 -->
            <li  class="nav-item w-100 border-bottom pb-2 mb-3">
                <span class="nav-link p-0 m-0 d-flex align-items-center text-dark">
                    <i class="bi bi-align-bottom me-2" style="font-size: 1.25rem;"></i>
                    <span>源码分类</span>
                </span>
            </li>

            <!-- 其他分类项 -->
            <li class="nav-item border-end pe-3 me-3">
                <a class="text-dark text-decoration-none" href="#">分类1</a>
            </li>
            <li class="nav-item border-end pe-3 me-3">
                <a class="text-dark text-decoration-none" href="#">分类2</a>
            </li>
            <li class="nav-item border-end pe-3 me-3">
                <a class="text-dark text-decoration-none" href="#">分类3</a>
            </li>
        </ul>

        <ul class="nav nav-pills flex-wrap list-unstyled mb-4">
            <!-- 独立的一行，显示 A分类 -->
            <li  class="nav-item w-100 border-bottom pb-2 mb-3">
                <span class="nav-link p-0 m-0 d-flex align-items-center text-dark">
                    <i class="bi bi-align-bottom me-2" style="font-size: 1.25rem;"></i>
                    <span>网创分类</span>
                </span>
            </li>

            <!-- 其他分类项 -->
            <li class="nav-item border-end pe-3 me-3">
                <a class="text-dark text-decoration-none" href="#">分类1</a>
            </li>
            <li class="nav-item border-end pe-3 me-3">
                <a class="text-dark text-decoration-none" href="#">分类2</a>
            </li>
            <li class="nav-item border-end pe-3 me-3">
                <a class="text-dark text-decoration-none" href="#">分类3</a>
            </li>
        </ul>
    </div>
</body>
</html>

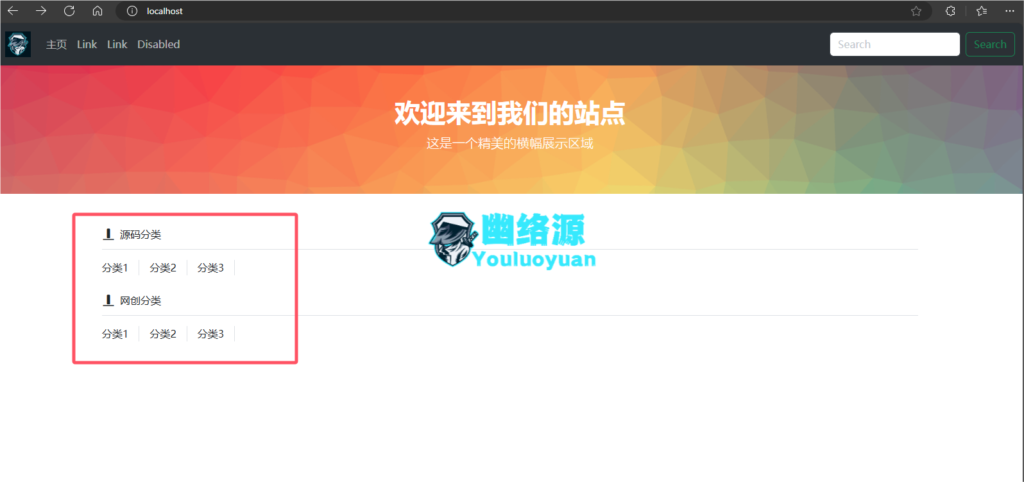

在主页，也就是index.html中引入该文件

主要是这一句


<div th:replace="~{front/commons/NavTab.html}"></div>
<div th:replace="~{front/commons/NavTab.html}"></div>
<div th:replace="~{front/commons/NavTab.html}"></div>

完整代码为


<!DOCTYPE html>
<html lang="en" xmlns:th="http://www.thymeleaf.org">
<head>
    <meta charset="UTF-8">
    <title>test</title>
    <link rel="stylesheet" href="/bootstrap-5.3.0/css/bootstrap.css">
    <link rel="stylesheet" href="https://cdn.jsdelivr.net/npm/bootstrap-icons@1.10.0/font/bootstrap-icons.css">
</head>
<body>
    <nav th:replace="~{front/commons/HeadNav.html}"></nav>
    <!-- 使用Bootstrap的容器 -->
    <div class="container-fluid p-0">
        <!-- Banner容器 -->
        <div class="position-relative">
            <!-- 图片 -->
            <img src="/front/banner1.webp" class="img-fluid w-100" alt="Banner Image" style="height: 200px; object-fit: cover;">
            <!-- 文字覆盖 -->
            <div class="position-absolute top-50 start-50 translate-middle text-center text-white">
                <h1 class="fw-bold">欢迎来到我们的站点</h1>
                <p class="lead">这是一个精美的横幅展示区域</p>
            </div>
        </div>
    </div>
    <div th:replace="~{front/commons/NavTab.html}"></div>
    <!--卡片-->
    <div class="row row-cols-1 row-cols-md-3 g-4">
    </div>
    <script src="/bootstrap-5.3.0/js/bootstrap.js"></script>
</body>
</html>
<!DOCTYPE html>
<html lang="en" xmlns:th="http://www.thymeleaf.org">
<head>
    <meta charset="UTF-8">
    <title>test</title>
    <link rel="stylesheet" href="/bootstrap-5.3.0/css/bootstrap.css">
    <link rel="stylesheet" href="https://cdn.jsdelivr.net/npm/bootstrap-icons@1.10.0/font/bootstrap-icons.css">
</head>
<body>
    <nav th:replace="~{front/commons/HeadNav.html}"></nav>

    <!-- 使用Bootstrap的容器 -->
    <div class="container-fluid p-0">
        <!-- Banner容器 -->
        <div class="position-relative">
            <!-- 图片 -->
            <img src="/front/banner1.webp" class="img-fluid w-100" alt="Banner Image" style="height: 200px; object-fit: cover;">

            <!-- 文字覆盖 -->
            <div class="position-absolute top-50 start-50 translate-middle text-center text-white">
                <h1 class="fw-bold">欢迎来到我们的站点</h1>
                <p class="lead">这是一个精美的横幅展示区域</p>
            </div>
        </div>
    </div>

    <div th:replace="~{front/commons/NavTab.html}"></div>

    <!--卡片-->
    <div class="row row-cols-1 row-cols-md-3 g-4">

    </div>

    <script src="/bootstrap-5.3.0/js/bootstrap.js"></script>
</body>
</html>
<!DOCTYPE html>
<html lang="en" xmlns:th="http://www.thymeleaf.org">
<head>
    <meta charset="UTF-8">
    <title>test</title>
    <link rel="stylesheet" href="/bootstrap-5.3.0/css/bootstrap.css">
    <link rel="stylesheet" href="https://cdn.jsdelivr.net/npm/bootstrap-icons@1.10.0/font/bootstrap-icons.css">
</head>
<body>
    <nav th:replace="~{front/commons/HeadNav.html}"></nav>

    <!-- 使用Bootstrap的容器 -->
    <div class="container-fluid p-0">
        <!-- Banner容器 -->
        <div class="position-relative">
            <!-- 图片 -->
            <img src="/front/banner1.webp" class="img-fluid w-100" alt="Banner Image" style="height: 200px; object-fit: cover;">

            <!-- 文字覆盖 -->
            <div class="position-absolute top-50 start-50 translate-middle text-center text-white">
                <h1 class="fw-bold">欢迎来到我们的站点</h1>
                <p class="lead">这是一个精美的横幅展示区域</p>
            </div>
        </div>
    </div>

    <div th:replace="~{front/commons/NavTab.html}"></div>

    <!--卡片-->
    <div class="row row-cols-1 row-cols-md-3 g-4">

    </div>

    <script src="/bootstrap-5.3.0/js/bootstrap.js"></script>
</body>
</html>

此时你还无法启动项目，因为我们配置了数据库信息并且还没有创建对应的数据库，启动是不会成功的

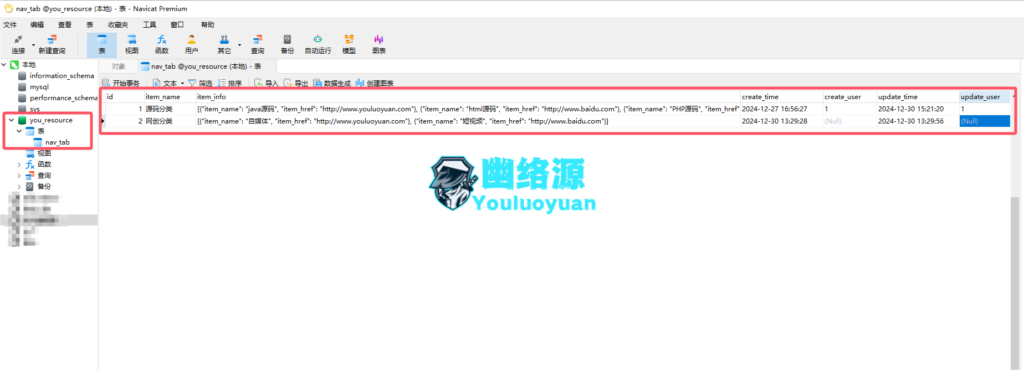

步骤5：创建数据库、建表，构造数据

我这里使用的MySQL数据库版本为5.7，当然用8.0更好，数据库名和yaml中配置的名称一样，名为you_resource，创建一张表，名为nav_tab，我这里直接将该表的SQL脚本放出来，直接使用即可


SET NAMES utf8mb4;
SET FOREIGN_KEY_CHECKS = 0;
-- ----------------------------
-- Table structure for nav_tab
-- ----------------------------
DROP TABLE IF EXISTS `nav_tab`;
CREATE TABLE `nav_tab`  (
  `id` bigint(20) NOT NULL AUTO_INCREMENT COMMENT 'NavTab分类id',
  `item_name` varchar(50) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NOT NULL COMMENT '分类名称',
  `item_info` varchar(1000) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NOT NULL COMMENT '子分类项信息',
  `create_time` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `create_user` varchar(255) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '创建人名称',
  `update_time` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '更新时间',
  `update_user` varchar(255) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '更新人名称',
  PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 3 CHARACTER SET = utf8mb4 COLLATE = utf8mb4_general_ci COMMENT = 'NavTab分类表\r\nid为大分类的id\r\nitem_name为大分类的名称\r\nitem_info为小分类项的信息，以json形式，包括了分类项的名称、超链接地址' ROW_FORMAT = Dynamic;
-- ----------------------------
-- Records of nav_tab
-- ----------------------------
INSERT INTO `nav_tab` VALUES (1, '源码分类', '[{\"item_name\": \"java源码\", \"item_href\": \"http://www.youluoyuan.com\"}, {\"item_name\": \"html源码\", \"item_href\": \"http://www.baidu.com\"}, {\"item_name\": \"PHP源码\", \"item_href\": \"http://www.baidu.com\"}]', '2024-12-27 16:56:27', '1', '2024-12-30 15:21:20', '1');
INSERT INTO `nav_tab` VALUES (2, '网创分类', '[{\"item_name\": \"自媒体\", \"item_href\": \"http://www.youluoyuan.com\"}, {\"item_name\": \"短视频\", \"item_href\": \"http://www.baidu.com\"}]', '2024-12-30 13:29:28', NULL, '2024-12-30 13:29:56', NULL);
SET FOREIGN_KEY_CHECKS = 1;
SET NAMES utf8mb4;
SET FOREIGN_KEY_CHECKS = 0;

-- ----------------------------
-- Table structure for nav_tab
-- ----------------------------
DROP TABLE IF EXISTS `nav_tab`;
CREATE TABLE `nav_tab`  (
  `id` bigint(20) NOT NULL AUTO_INCREMENT COMMENT 'NavTab分类id',
  `item_name` varchar(50) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NOT NULL COMMENT '分类名称',
  `item_info` varchar(1000) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NOT NULL COMMENT '子分类项信息',
  `create_time` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `create_user` varchar(255) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '创建人名称',
  `update_time` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '更新时间',
  `update_user` varchar(255) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '更新人名称',
  PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 3 CHARACTER SET = utf8mb4 COLLATE = utf8mb4_general_ci COMMENT = 'NavTab分类表\r\nid为大分类的id\r\nitem_name为大分类的名称\r\nitem_info为小分类项的信息，以json形式，包括了分类项的名称、超链接地址' ROW_FORMAT = Dynamic;

-- ----------------------------
-- Records of nav_tab
-- ----------------------------
INSERT INTO `nav_tab` VALUES (1, '源码分类', '[{\"item_name\": \"java源码\", \"item_href\": \"http://www.youluoyuan.com\"}, {\"item_name\": \"html源码\", \"item_href\": \"http://www.baidu.com\"}, {\"item_name\": \"PHP源码\", \"item_href\": \"http://www.baidu.com\"}]', '2024-12-27 16:56:27', '1', '2024-12-30 15:21:20', '1');
INSERT INTO `nav_tab` VALUES (2, '网创分类', '[{\"item_name\": \"自媒体\", \"item_href\": \"http://www.youluoyuan.com\"}, {\"item_name\": \"短视频\", \"item_href\": \"http://www.baidu.com\"}]', '2024-12-30 13:29:28', NULL, '2024-12-30 13:29:56', NULL);

SET FOREIGN_KEY_CHECKS = 1;
SET NAMES utf8mb4;
SET FOREIGN_KEY_CHECKS = 0;

-- ----------------------------
-- Table structure for nav_tab
-- ----------------------------
DROP TABLE IF EXISTS `nav_tab`;
CREATE TABLE `nav_tab`  (
  `id` bigint(20) NOT NULL AUTO_INCREMENT COMMENT 'NavTab分类id',
  `item_name` varchar(50) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NOT NULL COMMENT '分类名称',
  `item_info` varchar(1000) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NOT NULL COMMENT '子分类项信息',
  `create_time` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
  `create_user` varchar(255) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '创建人名称',
  `update_time` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP COMMENT '更新时间',
  `update_user` varchar(255) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '更新人名称',
  PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 3 CHARACTER SET = utf8mb4 COLLATE = utf8mb4_general_ci COMMENT = 'NavTab分类表\r\nid为大分类的id\r\nitem_name为大分类的名称\r\nitem_info为小分类项的信息，以json形式，包括了分类项的名称、超链接地址' ROW_FORMAT = Dynamic;

-- ----------------------------
-- Records of nav_tab
-- ----------------------------
INSERT INTO `nav_tab` VALUES (1, '源码分类', '[{\"item_name\": \"java源码\", \"item_href\": \"http://www.youluoyuan.com\"}, {\"item_name\": \"html源码\", \"item_href\": \"http://www.baidu.com\"}, {\"item_name\": \"PHP源码\", \"item_href\": \"http://www.baidu.com\"}]', '2024-12-27 16:56:27', '1', '2024-12-30 15:21:20', '1');
INSERT INTO `nav_tab` VALUES (2, '网创分类', '[{\"item_name\": \"自媒体\", \"item_href\": \"http://www.youluoyuan.com\"}, {\"item_name\": \"短视频\", \"item_href\": \"http://www.baidu.com\"}]', '2024-12-30 13:29:28', NULL, '2024-12-30 13:29:56', NULL);

SET FOREIGN_KEY_CHECKS = 1;

库、表创建导入完成后，你应当看到这样的内容，如图

步骤6：创建视图对象

因为分类标签表中子标签是以json格式存储，直接使用实体返回的信息无法直接应用于模板，因此在domain中创建vo目录，建立模板所需的视图对象，如图，在vo中创建NavTabVo，内容如下，如果你的lombok无法使用，可自行将注解替换生成get和set方法(我这里就是)


@Data
@NoArgsConstructor
@AllArgsConstructor
public class NavTabVo {
    private Long id;
    private String itemName;
    private List<HashMap<String,String>> itemInfo;
    @DateTimeFormat(pattern = "yyyy-MM-dd")
    @JsonFormat(pattern = "yyyy-MM-dd",timezone = "GMT+8")
    private Date createTime;
    @DateTimeFormat(pattern = "yyyy-MM-dd")
    @JsonFormat(pattern = "yyyy-MM-dd",timezone = "GMT+8")
    private Date updateTime;
    private String createUser;
    private String updateUser;
}
@Data
@NoArgsConstructor
@AllArgsConstructor
public class NavTabVo {
    private Long id;
    private String itemName;
    private List<HashMap<String,String>> itemInfo;
    @DateTimeFormat(pattern = "yyyy-MM-dd")
    @JsonFormat(pattern = "yyyy-MM-dd",timezone = "GMT+8")
    private Date createTime;
    @DateTimeFormat(pattern = "yyyy-MM-dd")
    @JsonFormat(pattern = "yyyy-MM-dd",timezone = "GMT+8")
    private Date updateTime;
    private String createUser;
    private String updateUser;
}
@Data
@NoArgsConstructor
@AllArgsConstructor
public class NavTabVo {
    private Long id;
    private String itemName;
    private List<HashMap<String,String>> itemInfo;
    @DateTimeFormat(pattern = "yyyy-MM-dd")
    @JsonFormat(pattern = "yyyy-MM-dd",timezone = "GMT+8")
    private Date createTime;
    @DateTimeFormat(pattern = "yyyy-MM-dd")
    @JsonFormat(pattern = "yyyy-MM-dd",timezone = "GMT+8")
    private Date updateTime;
    private String createUser;
    private String updateUser;
}

步骤7：创建响应数据工具类

在后端处理数据，不一定总是成功的，因此有必要创建一个统一的响应数据格式，创建utils目录，添加名为Res的java文件，内容如下


public class Res<T> {
    private int code;  // 0 表示失败，1 表示成功
    private String msg;  // 错误或成功消息
    private T data;  // 返回的数据
    private Res(int code, String msg, T data) {
        this.code = code;
        this.msg = msg;
        this.data = data;
    }
    public static <T> Res<T> success(T data) {
        return new Res<T>(1,"成功",data);
    }
    public static <T> Res<T> error(String msg) {
        return new Res<T>(0,msg,null);
    }
    public int getCode() {
        return code;
    }
    public void setCode(int code) {
        this.code = code;
    }
    public String getMsg() {
        return msg;
    }
    public void setMsg(String msg) {
        this.msg = msg;
    }
    public T getData() {
        return data;
    }
    public void setData(T data) {
        this.data = data;
    }
    public Res() {
    }
}
public class Res<T> {
    private int code;  // 0 表示失败，1 表示成功
    private String msg;  // 错误或成功消息
    private T data;  // 返回的数据

    private Res(int code, String msg, T data) {
        this.code = code;
        this.msg = msg;
        this.data = data;
    }

    public static <T> Res<T> success(T data) {
        return new Res<T>(1,"成功",data);
    }

    public static <T> Res<T> error(String msg) {
        return new Res<T>(0,msg,null);
    }

    public int getCode() {
        return code;
    }

    public void setCode(int code) {
        this.code = code;
    }

    public String getMsg() {
        return msg;
    }

    public void setMsg(String msg) {
        this.msg = msg;
    }

    public T getData() {
        return data;
    }

    public void setData(T data) {
        this.data = data;
    }

    public Res() {
    }
}
public class Res<T> {
    private int code;  // 0 表示失败，1 表示成功
    private String msg;  // 错误或成功消息
    private T data;  // 返回的数据

    private Res(int code, String msg, T data) {
        this.code = code;
        this.msg = msg;
        this.data = data;
    }

    public static <T> Res<T> success(T data) {
        return new Res<T>(1,"成功",data);
    }

    public static <T> Res<T> error(String msg) {
        return new Res<T>(0,msg,null);
    }

    public int getCode() {
        return code;
    }

    public void setCode(int code) {
        this.code = code;
    }

    public String getMsg() {
        return msg;
    }

    public void setMsg(String msg) {
        this.msg = msg;
    }

    public T getData() {
        return data;
    }

    public void setData(T data) {
        this.data = data;
    }

    public Res() {
    }
}

步骤8：修改主页的控制器

上篇文章创建的主页控制器，只是用于处理跳转到主页，现在需要增加分类标签数据的响应

来到FrontPageCon，修改我们的FrontIndex接口，这里就要用到jackson和上面创建的Res了，以及对数据库的操作

接口内容如下

FrontPageCon.java


@Controller
@RequestMapping("/")
public class FrontPageCon {
    @Resource
    NavTabService navTabService;
    @GetMapping("/")
    public String FrontIndex(Model model) {
        List<NavTab> navTabs = navTabService.getNavTabs();
        List<NavTabVo> navTabVos = new ArrayList<>();
        for (NavTab navTab : navTabs) {
            NavTabVo navTabVo = new NavTabVo();
            navTabVo.setId(navTab.getId());
            navTabVo.setItemName(navTab.getItemName());
            navTabVo.setCreateTime(navTab.getCreateTime());
            navTabVo.setUpdateTime(navTab.getUpdateTime());
            navTabVo.setCreateUser(navTab.getCreateUser());
            navTabVo.setUpdateUser(navTab.getUpdateUser());
            String itemInfoStr = navTab.getItemInfo();
            try {
                ObjectMapper objectMapper = new ObjectMapper();
                // 将 JSON 字符串转换为 List<Map<String, String>>
                TypeReference<List<HashMap<String, String>>> typeReference = new TypeReference<List<HashMap<String, String>>>() {};
                List<HashMap<String, String>> itemInfo = objectMapper.readValue(itemInfoStr,typeReference);
                navTabVo.setItemInfo(itemInfo);
            } catch (Exception e) {
                model.addAttribute("res", Res.error(e.getMessage()));
                return "front/index";
            }
            navTabVos.add(navTabVo);
        }
        model.addAttribute("res", Res.success(navTabVos));
        return "front/index";
    }
}
@Controller
@RequestMapping("/")
public class FrontPageCon {

    @Resource
    NavTabService navTabService;

    @GetMapping("/")
    public String FrontIndex(Model model) {
        List<NavTab> navTabs = navTabService.getNavTabs();
        List<NavTabVo> navTabVos = new ArrayList<>();
        for (NavTab navTab : navTabs) {
            NavTabVo navTabVo = new NavTabVo();
            navTabVo.setId(navTab.getId());
            navTabVo.setItemName(navTab.getItemName());
            navTabVo.setCreateTime(navTab.getCreateTime());
            navTabVo.setUpdateTime(navTab.getUpdateTime());
            navTabVo.setCreateUser(navTab.getCreateUser());
            navTabVo.setUpdateUser(navTab.getUpdateUser());
            String itemInfoStr = navTab.getItemInfo();
            try {
                ObjectMapper objectMapper = new ObjectMapper();
                // 将 JSON 字符串转换为 List<Map<String, String>>
                TypeReference<List<HashMap<String, String>>> typeReference = new TypeReference<List<HashMap<String, String>>>() {};
                List<HashMap<String, String>> itemInfo = objectMapper.readValue(itemInfoStr,typeReference);
                navTabVo.setItemInfo(itemInfo);
            } catch (Exception e) {
                model.addAttribute("res", Res.error(e.getMessage()));
                return "front/index";
            }
            navTabVos.add(navTabVo);
        }
        model.addAttribute("res", Res.success(navTabVos));
        return "front/index";
    }
}
@Controller
@RequestMapping("/")
public class FrontPageCon {

    @Resource
    NavTabService navTabService;

    @GetMapping("/")
    public String FrontIndex(Model model) {
        List<NavTab> navTabs = navTabService.getNavTabs();
        List<NavTabVo> navTabVos = new ArrayList<>();
        for (NavTab navTab : navTabs) {
            NavTabVo navTabVo = new NavTabVo();
            navTabVo.setId(navTab.getId());
            navTabVo.setItemName(navTab.getItemName());
            navTabVo.setCreateTime(navTab.getCreateTime());
            navTabVo.setUpdateTime(navTab.getUpdateTime());
            navTabVo.setCreateUser(navTab.getCreateUser());
            navTabVo.setUpdateUser(navTab.getUpdateUser());
            String itemInfoStr = navTab.getItemInfo();
            try {
                ObjectMapper objectMapper = new ObjectMapper();
                // 将 JSON 字符串转换为 List<Map<String, String>>
                TypeReference<List<HashMap<String, String>>> typeReference = new TypeReference<List<HashMap<String, String>>>() {};
                List<HashMap<String, String>> itemInfo = objectMapper.readValue(itemInfoStr,typeReference);
                navTabVo.setItemInfo(itemInfo);
            } catch (Exception e) {
                model.addAttribute("res", Res.error(e.getMessage()));
                return "front/index";
            }
            navTabVos.add(navTabVo);
        }
        model.addAttribute("res", Res.success(navTabVos));
        return "front/index";
    }
}

NavTabService我就不说了(直接点击生成的东西)，这里放出对应实现类内容

NavTabServiceImpl.java


@Service("navTabService")
public class NavTabServiceImpl extends ServiceImpl<NavTabDao,NavTab> implements NavTabService {
    @Resource
    NavTabDao navTabDao;
    @Override
    public List<NavTab> getNavTabs() {
        return navTabDao.getNavTabs();
    }
}
@Service("navTabService")
public class NavTabServiceImpl extends ServiceImpl<NavTabDao,NavTab> implements NavTabService {

    @Resource
    NavTabDao navTabDao;

    @Override
    public List<NavTab> getNavTabs() {
        return navTabDao.getNavTabs();
    }
}
@Service("navTabService")
public class NavTabServiceImpl extends ServiceImpl<NavTabDao,NavTab> implements NavTabService {

    @Resource
    NavTabDao navTabDao;

    @Override
    public List<NavTab> getNavTabs() {
        return navTabDao.getNavTabs();
    }
}

NavTabDao.java，这里我没有使用注解的方式，因此还是有必要贴出


@Mapper
public interface NavTabDao extends BaseMapper<NavTab> {
    List<NavTab> getNavTabs();
}
@Mapper
public interface NavTabDao extends BaseMapper<NavTab> {
    List<NavTab> getNavTabs();
}
@Mapper
public interface NavTabDao extends BaseMapper<NavTab> {
    List<NavTab> getNavTabs();
}

到了dao这里，然后在resources的dao下创建NavTabDao.xml，内容如下


<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper
        PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.you_resource.dao.NavTabDao">
    <!--List<NavTab> getNavTabs();-->
    <select id="getNavTabs" resultType="com.you_resource.domain.pojo.NavTab">
        select * from nav_tab
    </select>
</mapper>
<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper
        PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.you_resource.dao.NavTabDao">
    <!--List<NavTab> getNavTabs();-->
    <select id="getNavTabs" resultType="com.you_resource.domain.pojo.NavTab">
        select * from nav_tab
    </select>
</mapper>
<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper
        PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.you_resource.dao.NavTabDao">
    <!--List<NavTab> getNavTabs();-->
    <select id="getNavTabs" resultType="com.you_resource.domain.pojo.NavTab">
        select * from nav_tab
    </select>
</mapper>

步骤9：查看主页

在前面的步骤，后端的相关内容都做好了，但是标签页还没有做处理，可以先启动项目看看显示是否正常，如果没问题，将会是如图的效果（中间那个彩色的区域是一张图，你可以替换为其他图片）

步骤10：修改标签页动态获取分类标签

将NavTab.html内容替换为如下

<!DOCTYPE html>
<html lang="en" xmlns:th="http://www.thymeleaf.org">
<head>
</head>
<body>
<div class="container mt-4 bg-white p-4 rounded">
    <div th:if="${res.getCode() == 0}">
        <strong>错误：</strong> <span th:text="${res.getMsg()}"></span>
    </div>
    <ul th:each="navTabVo : ${res.getData()}" class="nav nav-pills flex-wrap list-unstyled mb-4">
        <!-- 独立的一行，显示 A分类 -->
        <li  class="nav-item w-100 border-bottom pb-2 mb-3">
                <span class="nav-link p-0 m-0 d-flex align-items-center text-dark">
                    <i class="bi bi-align-bottom me-2" style="font-size: 1.25rem;"></i>
                    <span th:text="${navTabVo.getItemName()}"></span>
                </span>
        </li>

        <!-- 其他分类项 -->
        <li class="nav-item border-end pe-3 me-3" th:each="itemInfo : ${navTabVo.getItemInfo()}" >
            <a class="text-dark text-decoration-none" th:href="${itemInfo['item_href']}" th:text="${itemInfo['item_name']}"></a>
        </li>
    </ul>
</div>
</body>
</html>

可以看到，内容省略了不少，且这里利用thymeleaf的语法动态的获取的接口中响应的数据，再次启动项目，结果如下

补充说明

补充1.代码中的错误处理解释

我们提到了响应的数据问题，如果后台处理数据错误时总不可能直接给用户展示个例如500的错误吧，比如如下图

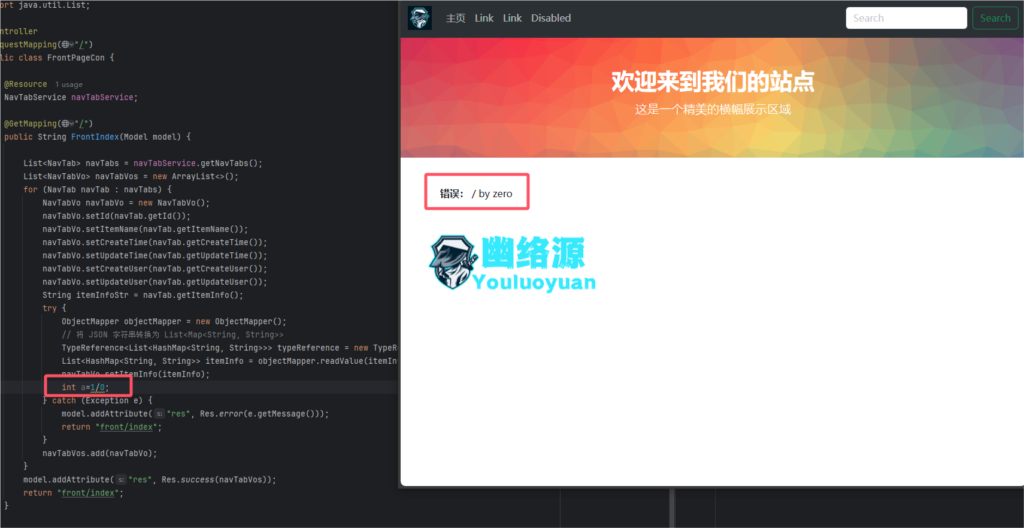

接口中在可能出现错误的地方，也就是json解析那块，做了异常捕获，并响应对应的错误信息，我们可以在try中故意制造个除以0的错误看看效果，如图，还算不错

补充2.解读thymeleaf的模板渲染

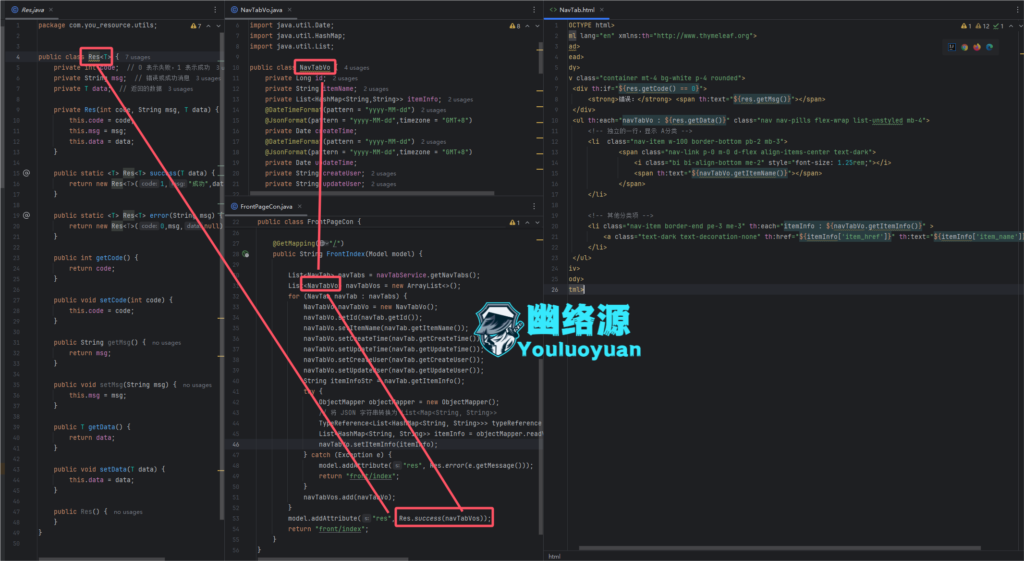

首先是响应的数据中，可以看到是一个Res包含了code、msg、data的，且data是一个List<NavTabVo>对象，且每个NavTabVo中有个比较特殊的属性itemInfo，其类型是List<HashMap<String,String>>，这也是为了应付json数据转化为java对象，因为模板只可解析java对象

在NavTab.html中，以下代码做了对后端出异常的处理显示


<div th:if="${res.getCode() == 0}">
    <strong>错误：</strong> <span th:text="${res.getMsg()}"></span>
</div>
<div th:if="${res.getCode() == 0}">
    <strong>错误：</strong> <span th:text="${res.getMsg()}"></span>
</div>
<div th:if="${res.getCode() == 0}">
    <strong>错误：</strong> <span th:text="${res.getMsg()}"></span>
</div>

ul中，${res.getData()}对应着Res对象的getData方法，这里使用了javabean模式的获取数据的方法，th:each表示遍历获取每个对象并命名为navTabVo，后面的th:text=”${navTabVo.getItemName()}”是一样的，使用java对象的get方法。

再往下，可以看到a标签中的获取数据方式与上面不同，是这样的 th:href=”${itemInfo[‘item_href’]}” th:text=”${itemInfo[‘item_name’]}” ，因为这里的每个itemInfo在接口中可以看到是一个个Map，因此需用此方式来获取对应的值


<ul th:each="navTabVo : ${res.getData()}" class="nav nav-pills flex-wrap list-unstyled mb-4">
        <!-- 独立的一行，显示 A分类 -->
        <li  class="nav-item w-100 border-bottom pb-2 mb-3">
                <span class="nav-link p-0 m-0 d-flex align-items-center text-dark">
                    <i class="bi bi-align-bottom me-2" style="font-size: 1.25rem;"></i>
                    <span th:text="${navTabVo.getItemName()}"></span>
                </span>
        </li>
        <!-- 其他分类项 -->
        <li class="nav-item border-end pe-3 me-3" th:each="itemInfo : ${navTabVo.getItemInfo()}" >
            <a class="text-dark text-decoration-none" th:href="${itemInfo['item_href']}" th:text="${itemInfo['item_name']}"></a>
        </li>
    </ul>
<ul th:each="navTabVo : ${res.getData()}" class="nav nav-pills flex-wrap list-unstyled mb-4">
        <!-- 独立的一行，显示 A分类 -->
        <li  class="nav-item w-100 border-bottom pb-2 mb-3">
                <span class="nav-link p-0 m-0 d-flex align-items-center text-dark">
                    <i class="bi bi-align-bottom me-2" style="font-size: 1.25rem;"></i>
                    <span th:text="${navTabVo.getItemName()}"></span>
                </span>
        </li>

        <!-- 其他分类项 -->
        <li class="nav-item border-end pe-3 me-3" th:each="itemInfo : ${navTabVo.getItemInfo()}" >
            <a class="text-dark text-decoration-none" th:href="${itemInfo['item_href']}" th:text="${itemInfo['item_name']}"></a>
        </li>
    </ul>
<ul th:each="navTabVo : ${res.getData()}" class="nav nav-pills flex-wrap list-unstyled mb-4">
        <!-- 独立的一行，显示 A分类 -->
        <li  class="nav-item w-100 border-bottom pb-2 mb-3">
                <span class="nav-link p-0 m-0 d-flex align-items-center text-dark">
                    <i class="bi bi-align-bottom me-2" style="font-size: 1.25rem;"></i>
                    <span th:text="${navTabVo.getItemName()}"></span>
                </span>
        </li>

        <!-- 其他分类项 -->
        <li class="nav-item border-end pe-3 me-3" th:each="itemInfo : ${navTabVo.getItemInfo()}" >
            <a class="text-dark text-decoration-none" th:href="${itemInfo['item_href']}" th:text="${itemInfo['item_name']}"></a>
        </li>
    </ul>
